FF107DM180S4詳細信息
FF107DM180S4
訂購熱線：13360667204
關鍵詞：膨化機齒輪減速機電機_FF107DM180S4_FF107DT180S4
FF107DM180S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107DM180S4 | 74.52 | 18.5KW | 20.0rpm | 8980N.m | 579kg | 46200N | 0.85 |
| FF107DM180S4 | 67.62 | 18.5KW | 22.0rpm | 8150N.m | 579kg | 48500N | 0.95 |
| FF107DM180S4 | 58.12 | 18.5KW | 25.0rpm | 7000N.m | 579kg | 48700N | 1.10 |
| FF107DM180S4 | 50.73 | 18.5KW | 29.0rpm | 6110N.m | 579kg | 48400N | 1.25 |
| FF107DM180S4 | 43.03 | 18.5KW | 34.0rpm | 5180N.m | 579kg | 47700N | 1.50 |
| FF107DM180S4 | 37.61 | 18.5KW | 39.0rpm | 4530N.m | 579kg | 47000N | 1.70 |
| FF107DM180S4 | 31.80 | 18.5KW | 46.0rpm | 3830N.m | 579kg | 46000N | 2.00 |
| FF107DM180S4 | 33.79 | 18.5KW | 43.0rpm | 4070N.m | 579kg | 46400N | 1.80 |
| FF107DM180S4 | 27.57 | 18.5KW | 53.0rpm | 3320N.m | 579kg | 45000N | 2.40 |
| FF107DM180S4 | 25.14 | 18.5KW | 58.0rpm | 3030N.m | 579kg | 44300N | 2.60 |
| FF107DM180S4 | 21.76 | 18.5KW | 67.0rpm | 2620N.m | 579kg | 43200N | 3.00 |
FF107DT180S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107DT180S4 | 74.52 | 18.5KW | 20.0rpm | 8980N.m | 579kg | 46200N | 0.85 |
| FF107DT180S4 | 67.62 | 18.5KW | 22.0rpm | 8150N.m | 579kg | 48500N | 0.95 |
| FF107DT180S4 | 58.12 | 18.5KW | 25.0rpm | 7000N.m | 579kg | 48700N | 1.10 |
| FF107DT180S4 | 50.73 | 18.5KW | 29.0rpm | 6110N.m | 579kg | 48400N | 1.25 |
| FF107DT180S4 | 43.03 | 18.5KW | 34.0rpm | 5180N.m | 579kg | 47700N | 1.50 |
| FF107DT180S4 | 37.61 | 18.5KW | 39.0rpm | 4530N.m | 579kg | 47000N | 1.70 |
| FF107DT180S4 | 31.80 | 18.5KW | 46.0rpm | 3830N.m | 579kg | 46000N | 2.00 |
| FF107DT180S4 | 33.79 | 18.5KW | 43.0rpm | 4070N.m | 579kg | 46400N | 1.80 |
| FF107DT180S4 | 27.57 | 18.5KW | 53.0rpm | 3320N.m | 579kg | 45000N | 2.40 |
| FF107DT180S4 | 25.14 | 18.5KW | 58.0rpm | 3030N.m | 579kg | 44300N | 2.60 |
| FF107DT180S4 | 21.76 | 18.5KW | 67.0rpm | 2620N.m | 579kg | 43200N | 3.00 |
FF107DM180S4減速器電動機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

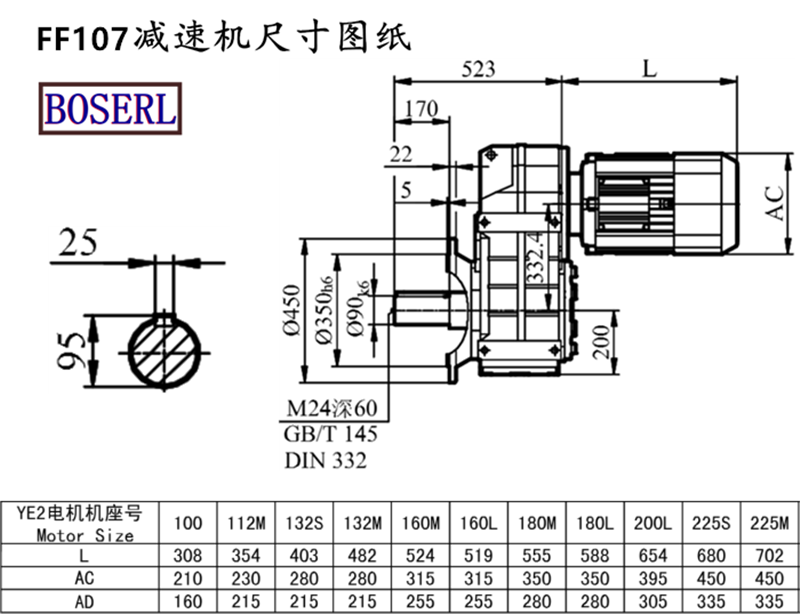

FF107DM180S4減速器電動機安裝尺寸圖紙
FF107DM180S4減速器電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
