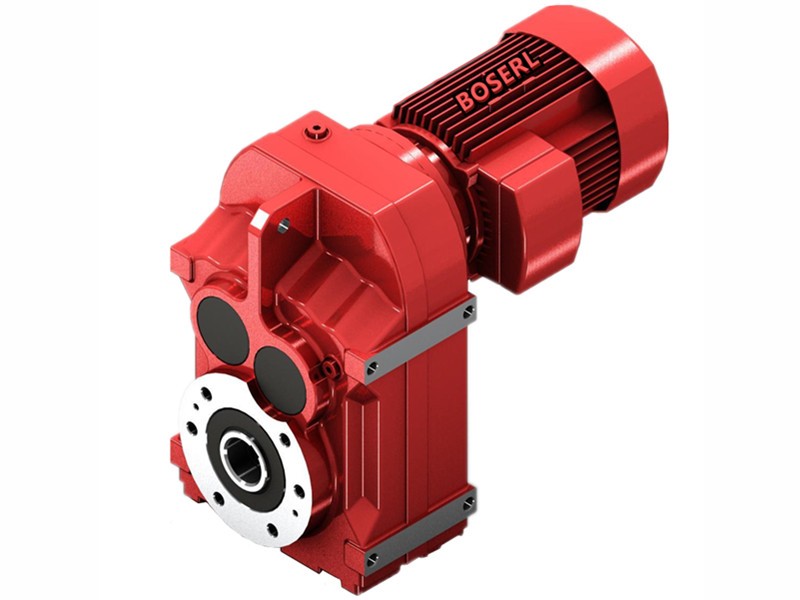

FF67DT132MC4詳細信息
FF67DT132MC4
訂購熱線：13360667204
關鍵詞：立式直聯減速機電機_FF67DT132MC4_FF67DT132ML4
FF67DT132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF67DT132MC4 | 22.05 | 5.5KW | 66.0rpm | 795N.m | 115Kg | 10500N | 1.05 |
| FF67DT132MC4 | 20.90 | 5.5KW | 70.0rpm | 750N.m | 115Kg | 10900N | 1.10 |
| FF67DT132MC4 | 18.29 | 5.5KW | 80.0rpm | 660N.m | 115Kg | 11500N | 1.25 |
| FF67DT132MC4 | 16.48 | 5.5KW | 88.0rpm | 590N.m | 115Kg | 11900N | 1.40 |
| FF67DT132MC4 | 14.46 | 5.5KW | 101rpm | 520N.m | 115Kg | 12300N | 1.55 |
| FF67DT132MC4 | 12.76 | 5.5KW | 114rpm | 460N.m | 115Kg | 12600N | 1.80 |
| FF67DT132MC4 | 11.31 | 5.5KW | 129rpm | 405N.m | 115Kg | 12800N | 2.00 |
| FF67DT132MC4 | 9.66 | 5.5KW | 151rpm | 345N.m | 115Kg | 12900N | 2.40 |
| FF67DT132MC4 | 9.08 | 5.5KW | 160rpm | 325N.m | 115Kg | 12400N | 1.60 |
| FF67DT132MC4 | 8.60 | 5.5KW | 169rpm | 310N.m | 115Kg | 12200N | 1.85 |
| FF67DT132MC4 | 7.53 | 5.5KW | 193rpm | 270N.m | 115Kg | 11900N | 2.20 |
| FF67DT132MC4 | 6.78 | 5.5KW | 214rpm | 240N.m | 115Kg | 11700N | 2.50 |
| FF67DT132MC4 | 5.95 | 5.5KW | 245rpm | 210N.m | 115Kg | 11300N | 2.80 |
| FF67DT132MC4 | 5.25 | 5.5KW | 277rpm | 190N.m | 115Kg | 11000N | 3.10 |
| FF67DT132MC4 | 4.66 | 5.5KW | 313rpm | 168N.m | 115Kg | 10700N | 3.30 |
| FF67DT132MC4 | 3.97 | 5.5KW | 366rpm | 144N.m | 115Kg | 10300N | 3.50 |
FF67DT132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF67DT132ML4 | 22.05 | 5.5KW | 66.0rpm | 795N.m | 115Kg | 10500N | 1.05 |
| FF67DT132ML4 | 20.90 | 5.5KW | 70.0rpm | 750N.m | 115Kg | 10900N | 1.10 |
| FF67DT132ML4 | 18.29 | 5.5KW | 80.0rpm | 660N.m | 115Kg | 11500N | 1.25 |
| FF67DT132ML4 | 16.48 | 5.5KW | 88.0rpm | 590N.m | 115Kg | 11900N | 1.40 |
| FF67DT132ML4 | 14.46 | 5.5KW | 101rpm | 520N.m | 115Kg | 12300N | 1.55 |
| FF67DT132ML4 | 12.76 | 5.5KW | 114rpm | 460N.m | 115Kg | 12600N | 1.80 |
| FF67DT132ML4 | 11.31 | 5.5KW | 129rpm | 405N.m | 115Kg | 12800N | 2.00 |
| FF67DT132ML4 | 9.66 | 5.5KW | 151rpm | 345N.m | 115Kg | 12900N | 2.40 |
| FF67DT132ML4 | 9.08 | 5.5KW | 160rpm | 325N.m | 115Kg | 12400N | 1.60 |
| FF67DT132ML4 | 8.60 | 5.5KW | 169rpm | 310N.m | 115Kg | 12200N | 1.85 |
| FF67DT132ML4 | 7.53 | 5.5KW | 193rpm | 270N.m | 115Kg | 11900N | 2.20 |
| FF67DT132ML4 | 6.78 | 5.5KW | 214rpm | 240N.m | 115Kg | 11700N | 2.50 |
| FF67DT132ML4 | 5.95 | 5.5KW | 245rpm | 210N.m | 115Kg | 11300N | 2.80 |
| FF67DT132ML4 | 5.25 | 5.5KW | 277rpm | 190N.m | 115Kg | 11000N | 3.10 |
| FF67DT132ML4 | 4.66 | 5.5KW | 313rpm | 168N.m | 115Kg | 10700N | 3.30 |
| FF67DT132ML4 | 3.97 | 5.5KW | 366rpm | 144N.m | 115Kg | 10300N | 3.50 |

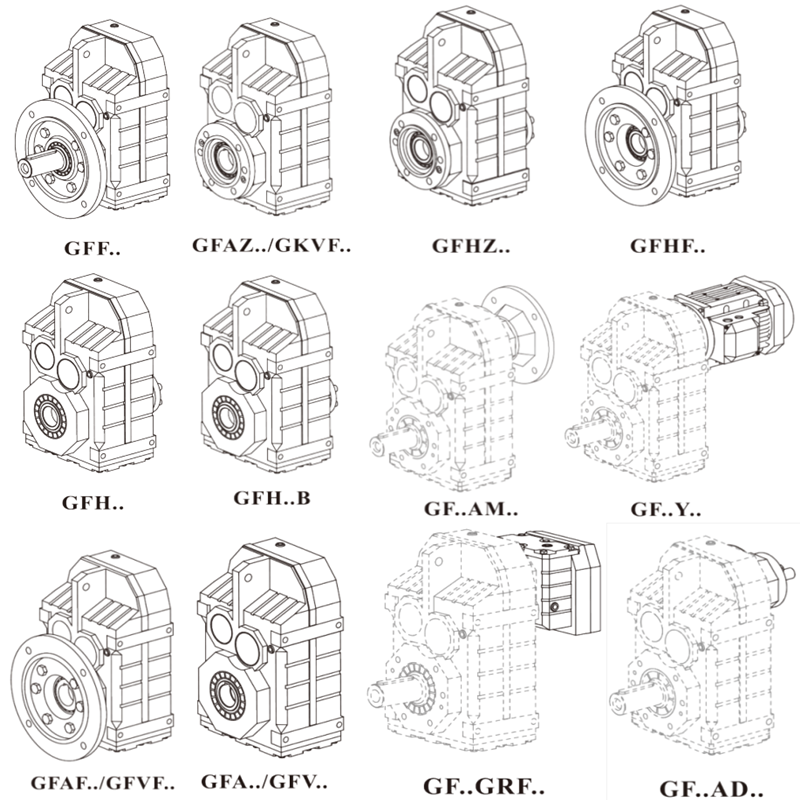

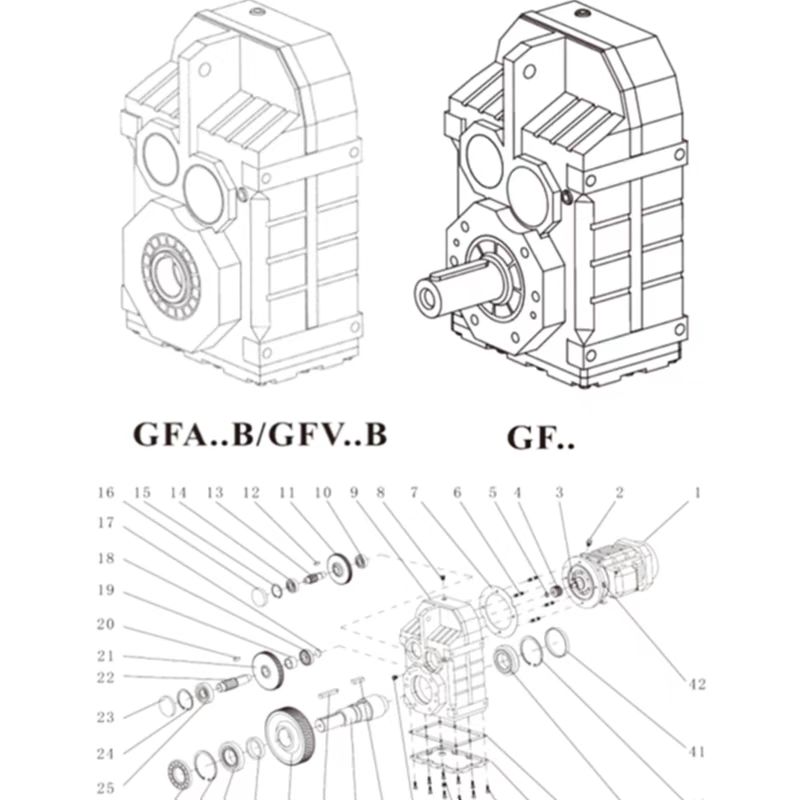

FF67DT132MC4減速齒輪箱類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

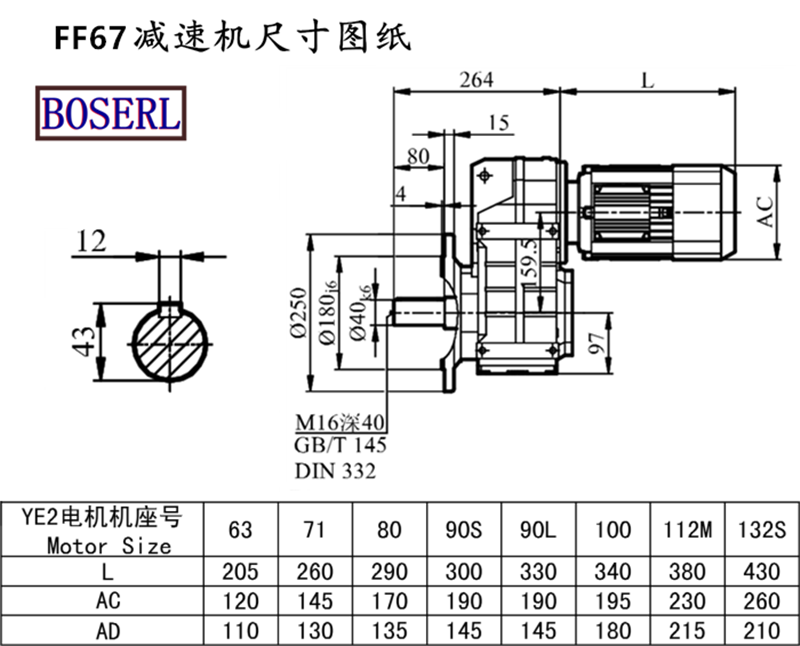

FF67DT132MC4減速齒輪箱安裝尺寸圖紙
FF67DT132MC4減速齒輪箱生產廠家，看廠請?zhí)崆叭祛A(yù)約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 立式直聯減速機電機 FF67DT132MC4 FF67DT132ML4
- 上一條FF67DV132ML4
- 下一條FF67DRS132ML4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| FF67DT132MC4減速機樣本 |
|
| FF67DT132MC4減速機三維圖紙 |
|
