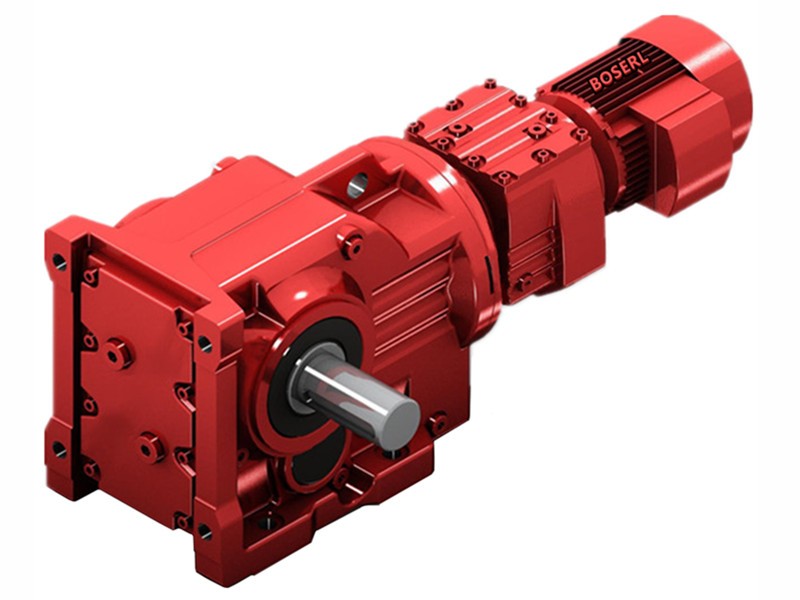

K87R57DM71S4詳細信息
K87R57DM71S4
訂購熱線：13360667204
關鍵詞：45KW電機如何配雙出軸減速器_K87R57DM71S4_K87R57DRS90L4
K87R57DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K87R57DM71S4 | 2088 | 0.25KW | 0.62r/min | 3390N.m | 113kg | 26300N | 0.80 |
| K87R57DM71S4 | 1854 | 0.25KW | 0.70r/min | 3010N.m | 113kg | 26900N | 0.90 |
| K87R57DM71S4 | 1657 | 0.25KW | 0.78r/min | 2690N.m | 113kg | 27300N | 1.00 |
| K87R57DM71S4 | 1415 | 0.25KW | 0.92r/min | 2290N.m | 113kg | 27800N | 1.15 |
| K87R57DM71S4 | 1229 | 0.25KW | 1.10r/min | 1990N.m | 113kg | 28100N | 1.35 |
| K87R57DM71S4 | 1078 | 0.25KW | 1.20r/min | 1730N.m | 113kg | 28300N | 1.55 |
| K87R57DM71S4 | 951 | 0.25KW | 1.40r/min | 1500N.m | 113kg | 28500N | 1.80 |
| K87R57DM71S4 | 837 | 0.25KW | 1.60r/min | 1310N.m | 113kg | 28600N | 2.10 |
| K87R57DM71S4 | 726 | 0.25KW | 1.80r/min | 1130N.m | 113kg | 28700N | 2.40 |
| K87R57DM71S4 | 638 | 0.25KW | 2.00r/min | 1010N.m | 113kg | 28800N | 2.70 |
K87R57DRS90L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K87R57DRS90L4 | 330 | 1.5KW | 4.30r/min | 3020N.m | 126kg | 26900N | 0.90 |
| K87R57DRS90L4 | 294 | 1.5KW | 4.90r/min | 2700N.m | 126kg | 27300N | 1.00 |
| K87R57DRS90L4 | 250 | 1.5KW | 5.70r/min | 2320N.m | 126kg | 27700N | 1.15 |
| K87R57DRS90L4 | 236 | 1.5KW | 6.00r/min | 2190N.m | 126kg | 27900N | 1.25 |
| K87R57DRS90L4 | 201 | 1.5KW | 7.10r/min | 1860N.m | 126kg | 28200N | 1.45 |
| K87R57DRS90L4 | 183 | 1.5KW | 7.80r/min | 1690N.m | 126kg | 28300N | 1.60 |
K87R57DM71S4減速機類型：
K87R57DM71S4底腳安裝斜齒輪—傘齒輪減速電機
KA87BR57DM71S4底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV87BR57DM71S4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH87BR57DM71S4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF87R57DM71S4B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF87R57DM71S4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF87R57DM71S4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF87R57DM71S4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA87R57DM71S4空心軸斜齒輪─傘齒輪減速電機
KV87R57DM71S4花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH87R57DM71S4空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT87R57DM71S4空心軸安裝斜齒輪—傘齒輪減速電機
KAZ87R57DM71S4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ87R57DM71S4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ87R57DM71S4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
K87R57DM71S4減速機馬達安裝尺寸圖紙
K87R57DM71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約K系列減速機
關鍵詞:K系列減速機與電機_傳動箱_傳動角箱_傳動減速機電機一套_傳動減速器_螺旋錐齒輪減速機_K系列減速機生產廠家
K系列減速機型號：K37減速機,K47減速機,K57減速機,K67減速機,K77減速機,K87減速機,K97減速機,K107減速機,K127減速機,K157減速機,K167減速機,K187減速機
K系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 45KW電機如何配雙出軸減速器 K87R57DM71S4 K87R57DRS90L4
- 上一條K87R57DM63L4
- 下一條K87R57DM63S4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| K87R57DM71S4減速機樣本 |
|
| K87R57DM71S4減速機三維圖紙 |
|
