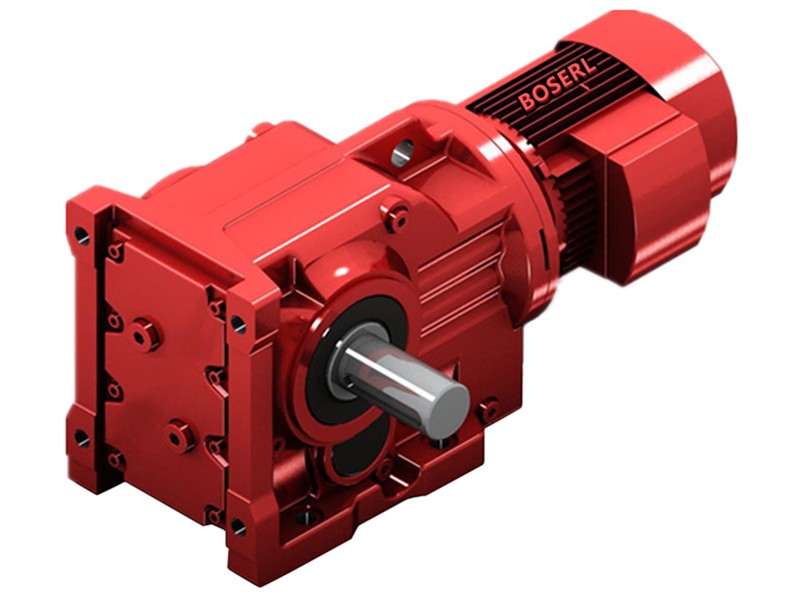

KF87DM160S4詳細信息
KF87DM160S4
訂購熱線：13360667204
關鍵詞：載重75噸負載電機減速機_KF87DM160S4_KF87DT160S4
KF87DM160S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF87DM160S4 | 49.16 | 9.2KW | 30rpm | 2960N.m | 160Kg | 22000N | 0.9 |
| KF87DM160S4 | 44.02 | 9.2KW | 33rpm | 2650N.m | 160Kg | 22200N | 1 |
| KF87DM160S4 | 36.52 | 9.2KW | 40rpm | 2200N.m | 160Kg | 22200N | 1.15 |
| KF87DM160S4 | 31.39 | 9.2KW | 47rpm | 1890N.m | 160Kg | 22100N | 1.45 |
| KF87DM160S4 | 27.88 | 9.2KW | 52rpm | 1680N.m | 160Kg | 21900N | 1.55 |
| KF87DM160S4 | 24.92 | 9.2KW | 59rpm | 1500N.m | 160Kg | 21600N | 1.65 |
| KF87DM160S4 | 22.41 | 9.2KW | 65rpm | 1350N.m | 160Kg | 21400N | 1.7 |
| KF87DM160S4 | 19.45 | 9.2KW | 75rpm | 1170N.m | 160Kg | 21000N | 1.95 |
| KF87DM160S4 | 17.42 | 9.2KW | 84rpm | 1050N.m | 160Kg | 20600N | 2.1 |
| KF87DM160S4 | 16 | 9.2KW | 91rpm | 960N.m | 160Kg | 19700N | 1.85 |
| KF87DM160S4 | 14.45 | 9.2KW | 101rpm | 870N.m | 160Kg | 20000N | 2.4 |
| KF87DM160S4 | 12.56 | 9.2KW | 116rpm | 755N.m | 160Kg | 19500N | 2.6 |
| KF87DM160S4 | 11.17 | 9.2KW | 131rpm | 670N.m | 160Kg | 18600N | 2.2 |
| KF87DM160S4 | 10 | 9.2KW | 146rpm | 600N.m | 160Kg | 18200N | 2.5 |
KF87DT160S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF87DT160S4 | 49.16 | 9.2KW | 30rpm | 2960N.m | 160Kg | 22000N | 0.9 |
| KF87DT160S4 | 44.02 | 9.2KW | 33rpm | 2650N.m | 160Kg | 22200N | 1 |
| KF87DT160S4 | 36.52 | 9.2KW | 40rpm | 2200N.m | 160Kg | 22200N | 1.15 |
| KF87DT160S4 | 31.39 | 9.2KW | 47rpm | 1890N.m | 160Kg | 22100N | 1.45 |
| KF87DT160S4 | 27.88 | 9.2KW | 52rpm | 1680N.m | 160Kg | 21900N | 1.55 |
| KF87DT160S4 | 24.92 | 9.2KW | 59rpm | 1500N.m | 160Kg | 21600N | 1.65 |
| KF87DT160S4 | 22.41 | 9.2KW | 65rpm | 1350N.m | 160Kg | 21400N | 1.7 |
| KF87DT160S4 | 19.45 | 9.2KW | 75rpm | 1170N.m | 160Kg | 21000N | 1.95 |
| KF87DT160S4 | 17.42 | 9.2KW | 84rpm | 1050N.m | 160Kg | 20600N | 2.1 |
| KF87DT160S4 | 16 | 9.2KW | 91rpm | 960N.m | 160Kg | 19700N | 1.85 |
| KF87DT160S4 | 14.45 | 9.2KW | 101rpm | 870N.m | 160Kg | 20000N | 2.4 |
| KF87DT160S4 | 12.56 | 9.2KW | 116rpm | 755N.m | 160Kg | 19500N | 2.6 |
| KF87DT160S4 | 11.17 | 9.2KW | 131rpm | 670N.m | 160Kg | 18600N | 2.2 |
| KF87DT160S4 | 10 | 9.2KW | 146rpm | 600N.m | 160Kg | 18200N | 2.5 |
KF87DM160S4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KF87DM160S4減速機馬達安裝尺寸圖紙：
KF87DM160S4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
大功率減速電機應用案例展示：
關鍵詞:KF系列齒輪減速機與電機_大功率減速電機_大負載減速器_大負載減速機電機_大功率電機減速機_大功率電動機減速機_大負載電動機減速機一套生產廠家
KF系列減速機型號：KF37減速機,KF47減速機,KF57減速機,KF67減速機,KF77減速機,KF87減速機,KF97減速機,KF107減速機,KF127減速機,KF157減速機,KF167減速機,KF187減速機
KF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 載重75噸負載電機減速機 KF87DM160S4 KF87DT160S4
- 上一條KF87DRN132M4
- 下一條KF87DRS160S4
