KH187R97DM80S4詳細信息

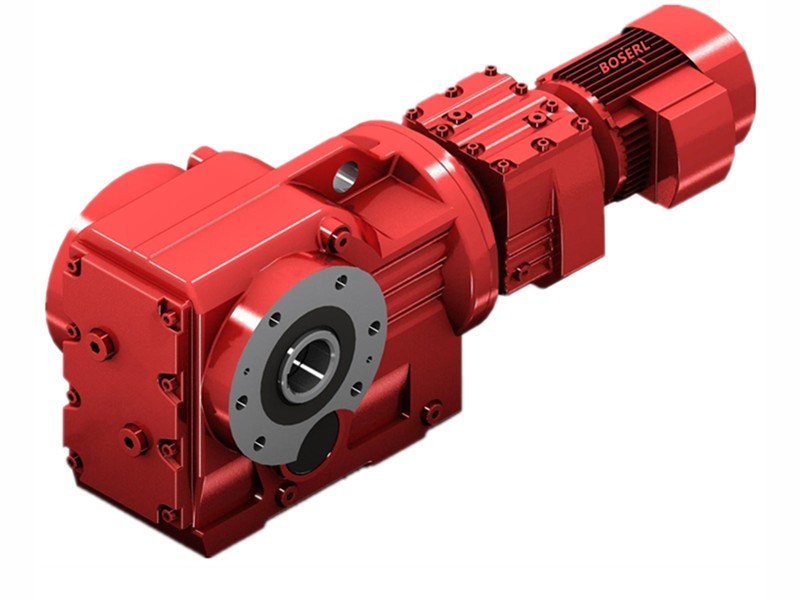

KH187R97DM80S4
訂購熱線：13360667204
關鍵詞：75KW電機帶錐齒輪減速機_KH187R97DM80S4_KH187R97DRS132MC4
KH187R97DM80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KH187R97DM80S4 | 16978 | 0.55KW | 0.08r/min | 54100N.m | 1,816kg | 190000N | 0.90 |
| KH187R97DM80S4 | 14272 | 0.55KW | 0.10r/min | 45400N.m | 1,816kg | 190000N | 1.10 |
| KH187R97DM80S4 | 13116 | 0.55KW | 0.11r/min | 41300N.m | 1,816kg | 190000N | 1.20 |
| KH187R97DM80S4 | 11647 | 0.55KW | 0.12r/min | 36000N.m | 1,816kg | 190000N | 1.40 |
| KH187R97DM80S4 | 7343 | 0.55KW | 0.19r/min | 23300N.m | 1,816kg | 190000N | 2.10 |
KH187R97DRS132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KH187R97DRS132MC4 | 1196 | 7.5KW | 1.20r/min | 53600N.m | 1,874kg | 190000N | 0.95 |
| KH187R97DRS132MC4 | 1046 | 7.5KW | 1.40r/min | 46800N.m | 1,874kg | 190000N | 1.05 |
| KH187R97DRS132MC4 | 945 | 7.5KW | 1.60r/min | 42300N.m | 1,874kg | 190000N | 1.20 |
| KH187R97DRS132MC4 | 738 | 7.5KW | 2.00r/min | 33000N.m | 1,874kg | 190000N | 1.50 |
| KH187R97DRS132MC4 | 621 | 7.5KW | 2.40r/min | 27700N.m | 1,874kg | 190000N | 1.80 |
| KH187R97DRS132MC4 | 527 | 7.5KW | 2.80r/min | 23400N.m | 1,874kg | 190000N | 2.10 |
KH187R97DM80S4減速機類型：
K187R97DM80S4底腳安裝斜齒輪—傘齒輪減速電機
KA187BR97DM80S4底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV187BR97DM80S4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH187BR97DM80S4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF187R97DM80S4B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF187R97DM80S4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF187R97DM80S4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF187R97DM80S4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA187R97DM80S4空心軸斜齒輪─傘齒輪減速電機
KV187R97DM80S4花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH187R97DM80S4空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT187R97DM80S4空心軸安裝斜齒輪—傘齒輪減速電機
KAZ187R97DM80S4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ187R97DM80S4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ187R97DM80S4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KH187R97DM80S4減速機馬達安裝尺寸圖紙
KH187R97DM80S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約大減速比減速機
關鍵詞:KAF系列減速機_大減速比減速機與電機_大速比減速機電機一套_大減速比減速器_大比數減速機_大比數減速器_大速比減速器生產廠家
KAF系列減速機型號：KAF37減速機,KAF47減速機,KAF57減速機,KAF67減速機,KAF77減速機,KAF87減速機,KAF97減速機,KAF107減速機,KAF127減速機,KAF157減速機,KAF167減速機,KAF187減速機
KAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 75KW電機帶錐齒輪減速機 KH187R97DM80S4 KH187R97DRS132MC4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| KH187R97DM80S4減速機樣本 |
|
| KH187R97DM80S4減速機三維圖紙 |
|
