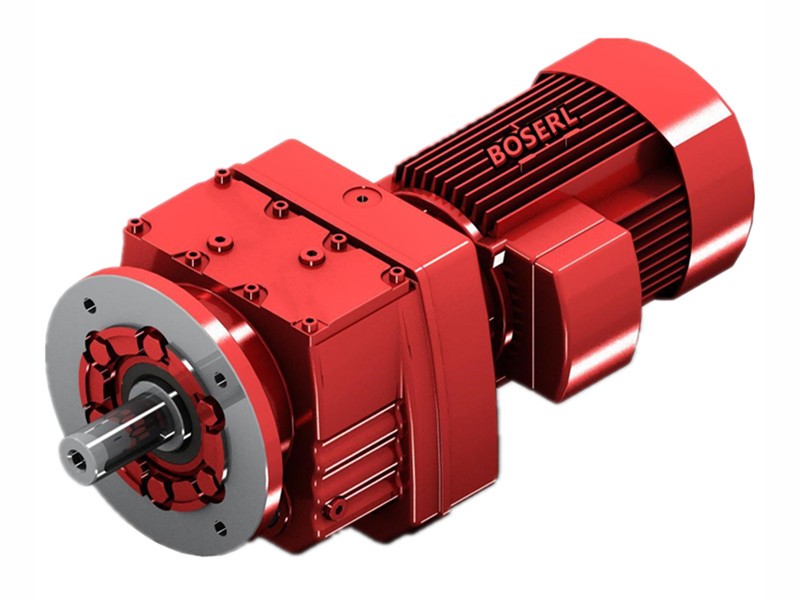

RXF107DV160S4詳細信息
RXF107DV160S4
訂購熱線：13360667204
關鍵詞：200KW三項減速器電機_RXF107DV160S4_RXF107DRN160S4
RXF107DV160S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RXF107DV160S4 | 78.57 | 9.2kw | 19rpm | 4730N.m | 230kg | 25800N | 0.9 |
| RXF107DV160S4 | 72.88 | 9.2kw | 20rpm | 4390N.m | 230kg | 29000N | 1 |
| RXF107DV160S4 | 65.6 | 9.2kw | 22rpm | 3950N.m | 230kg | 29300N | 1.1 |
| RXF107DV160S4 | 59.41 | 9.2kw | 25rpm | 3570N.m | 230kg | 28700N | 1.2 |
| RXF107DV160S4 | 52.68 | 9.2kw | 28rpm | 3170N.m | 230kg | 28000N | 1.35 |
| RXF107DV160S4 | 47.63 | 9.2kw | 31rpm | 2870N.m | 230kg | 27500N | 1.5 |
| RXF107DV160S4 | 40.37 | 9.2kw | 36rpm | 2430N.m | 230kg | 26500N | 1.75 |
| RXF107DV160S4 | 35.26 | 9.2kw | 41rpm | 2120N.m | 230kg | 25600N | 2 |
| RXF107DV160S4 | 29.49 | 9.2kw | 50rpm | 1770N.m | 230kg | 24500N | 2.4 |
| RXF107DV160S4 | 30.77 | 9.2kw | 47rpm | 1850N.m | 230kg | 24800N | 2.3 |
| RXF107DV160S4 | 27.58 | 9.2kw | 53rpm | 1660N.m | 230kg | 24100N | 2.6 |
| RXF107DV160S4 | 24.9 | 9.2kw | 59rpm | 1500N.m | 230kg | 23500N | 2.9 |
| RXF107DV160S4 | 22.62 | 9.2kw | 65rpm | 1360N.m | 230kg | 22900N | 3.2 |
| RXF107DV160S4 | 20.07 | 9.2kw | 73rpm | 1210N.m | 230kg | 22100N | 3.6 |
RXF107DRN160S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RXF107DRN160S4 | 78.57 | 9.2kw | 19rpm | 4730N.m | 230kg | 25800N | 0.9 |
| RXF107DRN160S4 | 72.88 | 9.2kw | 20rpm | 4390N.m | 230kg | 29000N | 1 |
| RXF107DRN160S4 | 65.6 | 9.2kw | 22rpm | 3950N.m | 230kg | 29300N | 1.1 |
| RXF107DRN160S4 | 59.41 | 9.2kw | 25rpm | 3570N.m | 230kg | 28700N | 1.2 |
| RXF107DRN160S4 | 52.68 | 9.2kw | 28rpm | 3170N.m | 230kg | 28000N | 1.35 |
| RXF107DRN160S4 | 47.63 | 9.2kw | 31rpm | 2870N.m | 230kg | 27500N | 1.5 |
| RXF107DRN160S4 | 40.37 | 9.2kw | 36rpm | 2430N.m | 230kg | 26500N | 1.75 |
| RXF107DRN160S4 | 35.26 | 9.2kw | 41rpm | 2120N.m | 230kg | 25600N | 2 |
| RXF107DRN160S4 | 29.49 | 9.2kw | 50rpm | 1770N.m | 230kg | 24500N | 2.4 |
| RXF107DRN160S4 | 30.77 | 9.2kw | 47rpm | 1850N.m | 230kg | 24800N | 2.3 |
| RXF107DRN160S4 | 27.58 | 9.2kw | 53rpm | 1660N.m | 230kg | 24100N | 2.6 |
| RXF107DRN160S4 | 24.9 | 9.2kw | 59rpm | 1500N.m | 230kg | 23500N | 2.9 |
| RXF107DRN160S4 | 22.62 | 9.2kw | 65rpm | 1360N.m | 230kg | 22900N | 3.2 |
| RXF107DRN160S4 | 20.07 | 9.2kw | 73rpm | 1210N.m | 230kg | 22100N | 3.6 |
RXF107DV160S4減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
RXF107DV160S4減速機馬達安裝尺寸圖紙
RXF107DV160S4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
減速機電機一體化應用案例展示：
關鍵詞:減速機電機一體化一套_RXF系列減速機與電機_電動機減速器一體機_減速機電機一體機生產廠家_減速機電機一體機廠家_RXF系列減速機生產廠家_減速機電動機一體機
RXF系列減速機型號：RXF57減速機,RXF67減速機,RXF77減速機,RXF87減速機,RXF97減速機,RXF107齒輪減速機
RXF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 200KW三項減速器電機 RXF107DV160S4 RXF107DRN160S4
